IMPORTANT WATER SYSTEM VARIABLES TO CONSIDER
We design, build, install, and service all of the types of water filtration systems shown below. We can customize any system to fit your specific water filtration needs regardless of shape based on your available floor space. Do you think you need an entire new system? Are you wondering what you’re existing problem is with your current system? Are you not sure? See the interactive P&ID drawing below or contact one of our qualified applications engineers and let us help you find exactly what you need whether you buy from us or not.

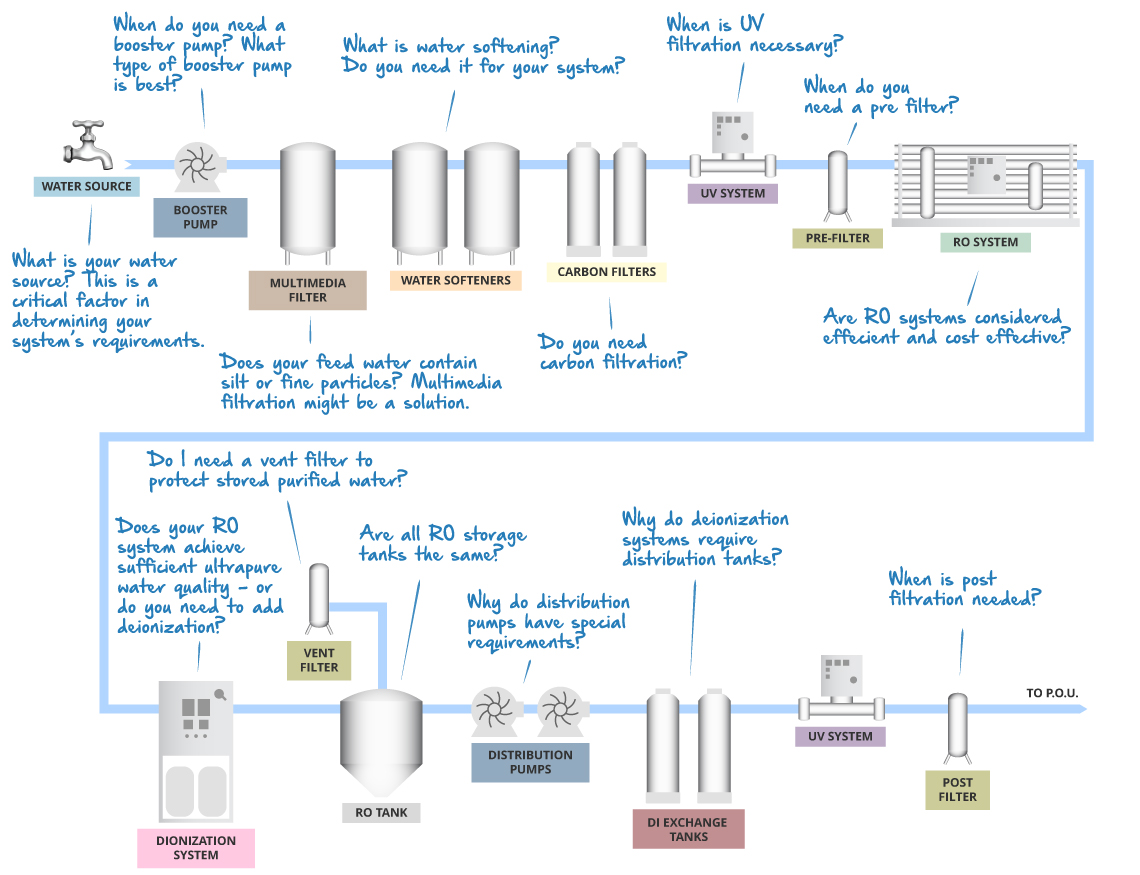

Click Piping and Instrumentation Diagram Below to Learn More About Each Component
Water Source
What is the quality of your water? Is it city water? Is it well water? Your feed water is the single most important factor to what your system will require.
Multimedia Filters
Applications
- General filtration
- Reduction of SDI (Silt Density Index)
- Removes particles from water down to 15 microns
Industries
- Food and Beverage
- RO system pretreatment
- Boiler or Cooling tower feed
Water Softeners
Applications
- Boiler Feed
- RO system pretreatment
- Cooling towers
Industries
- All industries, very commonly used
Carbon Filters
Applications
- RO pretreatment
- Taste and odor removal
- Lead and heavy metal reduction
- Chlorine and Chloramine removal
Industries
- All of our standard industries
- Important in dialysis water treatment
Ultraviolet
Applications
- UV Disinfection
- TOC (Total Oxidizable Carbon) Reduction
- Chlorine and Chloramine Destruction
- Ozone Destruction
Industries
- Aquaculture
- Food & Bev
- Life Sciences
- Marine
- Microelectronics
- Oil & Gas
- Power Generation
- Recreational Water
Reverse Osmosis
Applications
- Boiler feed water
- Ion-exchange pretreatment
- Rinse water
- Food ingredient water
- Safe drinking water
Industries
- Manufacturing / Automotive
- Laboratory / Universities
- Medical / Dialysis
Deionization
Applications
- Polish (increase water resistivity, lower conductivity) downstream of RO system
Filters
Applications
- General filtration upstream of RO systems and exchange deionization
- Filtration of air moving in and out of purified water storage tanks
- Final filters for ultrapure water
Industries
- All industries, very commonly used

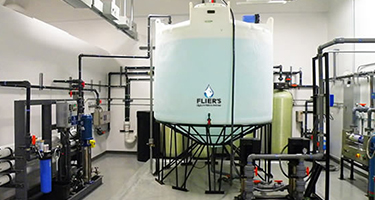

RO Tanks
Applications
- They are used in concert with an RO system anywhere RO systems are used (see RO system applications)
Industries
- See RO system industries

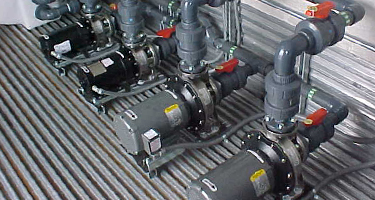

Pumps
Applications
- Re-pressurize water downstream of storage tanks.
- Boost pressure upstream of an RO system.
- They are one of the main components in most commercial RO systems.
Industries
- See RO system industries

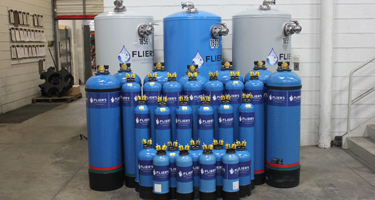

Deionization Exchange
Applications
- Downstream of RO system for polishing purified water
- Standalone purification in place of an RO system in situations where an RO system can’t be used
Industries
- All industries, very commonly used
IF YOU HAVE ANY QUESTIONS…
Don’t hesitate to contact one of our application engineers. We pride ourselves on being honest… we will only recommend a solution that is right for your application.
